Product Description:

Applications

1. Waterproof shoes suitable for various thickness and waterproofing

    products. Waterproof shoes：Sports shoes, snow boots, golf shoes,

    mountaineering shoes and slippers etc...

2. Waterproof with：Raincoat, NEOPRENE diving suit fishing pants,

    waterproof bag, ventilation pipe, NYLON tents and snow clothes, hat,

    gloves etc...

Features

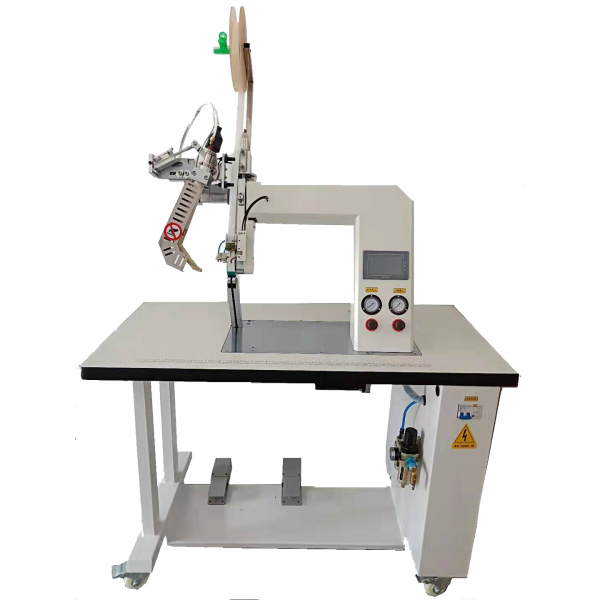

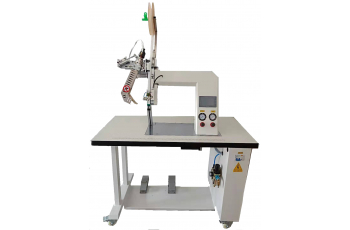

1. The machine is pressurized with hot gas nozzle and upper and lower

    rollers, and the waterproof tape is close to the seam to achieve the

    waterproof effect.

2. PLC+touch screen control, easy operation, digital intuitive. Air gun with

    a flat mouth, inlet air distribution, air gun phase adjustment, suitable for

    different thinness of the material can be adjusted up and down, easy to

    repair.

型式 Model	JYP-7188B
電源 Power	AC 220V 50HZ
電熱 Heater	1800W
最高熔接溫度 Maximum sealing temperture	800°C
熔接速度 Sealing speed	2~23M/min
氣壓 Air pressure	0.35~0.5Mpa
上下壓輪寬度 Pressing roller width	25mm
機器重量 N.W./G.W.	140/200KG
包裝尺寸 Package size	135*75*160cm
